Chicago Folders

Equipment introduction

·America’s best selling
·Best in folding precision
·Outstanding accuracy
·The most advanced control technology offers you better efficiency

Characteristics

·Two primary folders with three crossfolds
·Available in 1 to 4 or more lanes of primary folding

·Available in a choice of 120’’(3050mm), 130’’(3300mm) or 136”(3500mm) working width

·Advanced CHI-TOUCH PC based control system.

·Heavy duty AC frequency inverter drive motor.

·All measurements made by self-cleaning photo sensors with LED indicator.

·Single shockless static eliminator bar with power supply.

·Side slide-out and rear receiving tables.

·Start/Stop button pause and restarts operation without interrupting folds in progress.

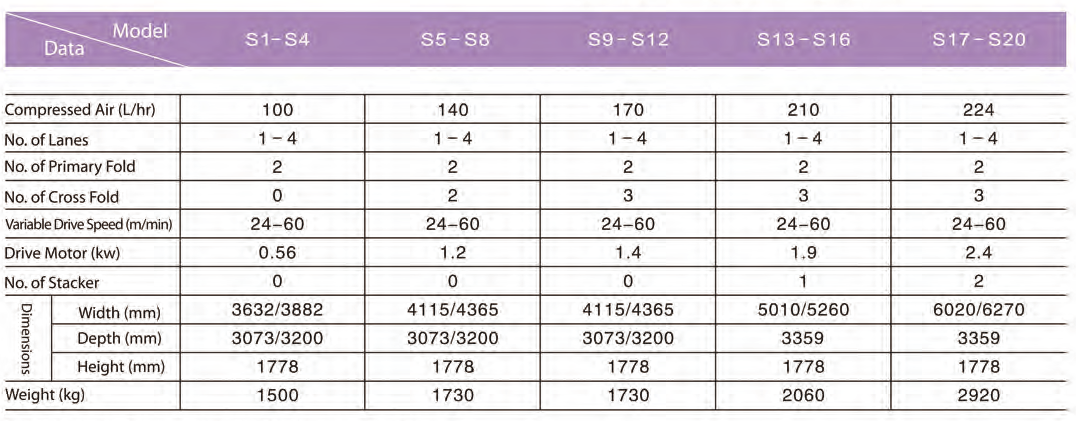

Parameter table

Remarks
Specifications and appearance subject to change without notice.
